Piezoelectric Materials Powering Smarter Sensing and Energy Conversion

Piezoelectricity: The Matriarch of the Crystals

Why is an Epigram Essential for Piezoelectric Materials?

“Just as piezoelectricity transforms pressure into energy, life teaches us that the challenges we face can ignite our true potential.” The article will explore how piezoelectricity is used around the world and its relevance to our daily lives. Before diving into the technical aspects, you might be interested in the etymology of the term "piezoelectricity" and its introduction to the Oxford Dictionary, a resource we often use to enhance our vocabulary. The term "piezoelectricity" has its roots in German; it was first recorded in the Athenaeum in 1881, with its English translation and definition appearing in 1883. To break down the term: "piezo" refers to pressure, while "electric" relates to electricity. This is how the definition was formed. As the title poses a question about the importance of this term, here's the answer: understanding the etymology of "piezoelectricity" helps readers grasp its significance. This knowledge not only familiarizes them with the concept but also enhances their understanding of this fascinating area of study. Therefore, we have included this section to provide our readers with valuable insights and a deeper comprehension of the subject.

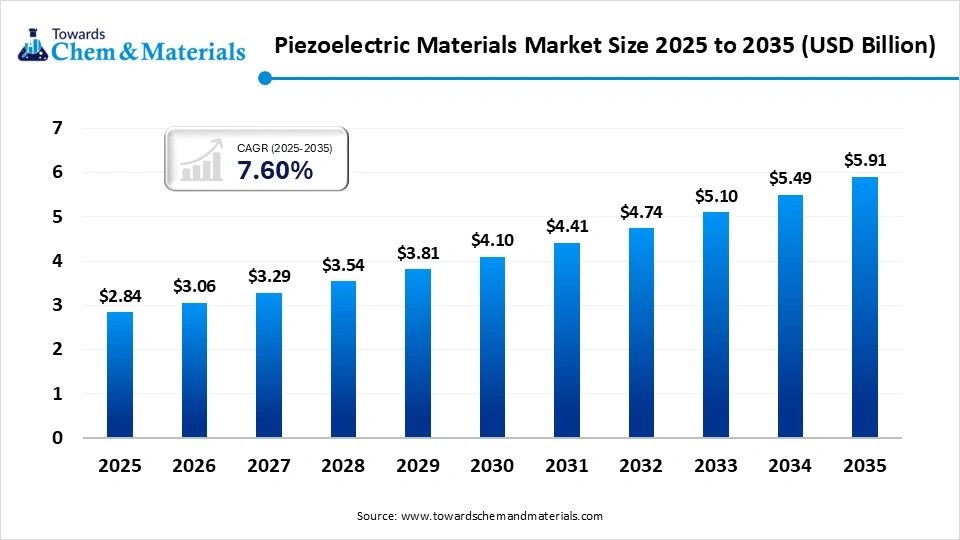

According to Towards Chemicals and Materials Analytics and Consulting, the global piezoelectric materials market size was estimated at USD 2.84 billion in 2025 and is predicted to increase from USD 3.06 billion in 2026 to approximately USD 5.91 billion by 2035, and is expected to grow at a CAGR of 7.6% during 2025-2035.

How Prologue Serve the Intention of Piezoelectric Materials?

Piezoelectric materials are a special type of materials which have the special property of converting electrical energy into mechanical energy and vice versa. They have the capacity to respond to pressure, vibration, force, and deformation and are useful in sensors, actuators, medical equipment, industrial machinery, automotive systems, robotics, and electronic devices. The piezoelectric materials have evolved from naturally occurring crystals to engineered ceramics, polymers, composites, and advanced lead-free materials, each with different benefits for different applications.

The first and most well-known piezoelectric material is the naturally occurring crystal quartz, which is stable and has a consistent electric response. It has proved to have excellent frequency stability and has been employed in timing devices, frequency-control systems, and sensors. The other early piezoelectric material that had a relatively strong response was Rochelle salt. But because of its sensitivity to the environment, it was not used long-term as compared to the more stable candidates in industry.

The synthetic piezoelectric ceramics greatly broadened the field. The interesting electrical and dielectric properties of barium titanate led to its use as a useful ceramic material. It has been applied in electronic parts, sensors, and transducers. Another important material is lead zirconate titanate (PZT), which exhibits a high electromechanical response and can be tailored for specific uses. It is very popular in ultrasonic transducers, vibration sensors, vibration actuators, and systems for precision control. But with the presence of lead in its composition, researchers are more and more exploring the possibility of finding a safe substitute for PZT.

One of the important classes of piezoelectric polymers is polyvinylidene fluoride (PVDF). Lightweight, flexible, and able to be rolled into thin films, it is well suited for thin-film flexible microphones, flexible electronic devices, pressure detectors, and thin-film wearable sensors. Piezoelectric polymers can be advantageous in cases where stiff ceramic materials cannot be used. The increasing concern for the environment has also spurred research into lead-free piezoelectric materials, such as potassium sodium niobate and some barium- and bismuth-based materials. Also, piezoelectric composites are made by using a combination of ceramics or other active materials and a flexible polymer matrix to obtain a balance of sensitivity, strength, and flexibility. Before this, the development of piezoelectric materials shows that the industry has been working towards improving performance, increasing flexibility, increasing durability, reducing weight, and enhancing environmental compatibility. The type of material used is a function of sensitivity, operating temperature, mechanical strength, frequency response, flexibility, and cost.

What are Piezoelectric Materials?

A special class of materials that can transform mechanical energy into electrical energy and vice versa is called Piezoelectric materials. The term piezoelectric is from the Greek piezein, meaning to press. These materials acquire an electrical charge under the influence of pressure, force, vibration, stretching, or deformation. On the other hand, if an electric voltage is applied to them, they deform slightly mechanically. The ability for the two-way energy conversion renders piezoelectric materials invaluable in sensing, actuating, and energy-conversion technologies. The piezoelectric effect is a property that comes from the internal structure of the material. Positive and negative charges are oppositely arranged in suitable crystals and other materials in a way that is not symmetrical. If mechanical stress is applied, the positions of these charges shift, causing an electrical imbalance and resulting in a measurable voltage. This is called the direct piezoelectric effect. The converse of this is called the converse piezoelectric effect, which is the mechanical movement that occurs when an electrical field is applied.

There are a number of types of piezoelectric materials that can roughly be categorized as natural crystals, ceramics, polymers, and composites. One of the most famous naturally occurring piezoelectric materials is quartz, which is used for its stability and low-frequency error characteristics. The lead zirconate titanate (PZT) material is extensively used in engineered ceramics with excellent piezoelectric properties. Other important ceramic materials include barium titanate. Piezoelectric polymers (e.g., PVDF) are lightweight and flexible and are appropriate for the use of thin or bendable sensors. Composite materials are made up of various materials to create a certain level of flexibility, strength, and electrical properties. The materials are used in various industries. In the medical field, piezoelectric materials are employed in ultrasound devices for generating and detecting high-frequency sound waves. They can sense vibration, pressure, and mechanical movement in the automotive industry. Piezoelectric sensors are employed in condition monitoring and vibration analysis of industrial machinery. They can also be used in microphones, buzzers, actuators, precision positioning systems, and many electronic devices. There is also an interest in energy harvesting using piezoelectric materials; that is, in using mechanical vibrations generated by machinery, movement, or the environment to generate a small amount of electrical energy. This can potentially support low-power sensors and smart devices. As the need for smart technologies grows, flexible, high-temperature, lead-free, and more environmentally friendly piezoelectric materials are being developed. Hence, piezoelectric materials are playing a significant role in today's sensing and automation, health, and energy conversion systems.

Get Full Access of Report | Immediate Delivery:https://www.towardschemandmaterials.com/download-sample/6511

What is the History of Piezoelectric Materials?

The discovery of piezoelectric materials dates back to the late 19th century, when scientists were actively searching for the relationship between mechanical pressure and electrical singularities in crystals. Although the actual term was identified in the year 1880, the foundation for the research was laid through earlier research into electricity, magnetism, and crystal structure. Piezoelectricity was first uncovered by two French brothers, Jacques Curie and Pierre Curie. Also, it is said somewhere that Marie Curie used piezoelectricity quarts method in researching radioactive elements. The research also involved Rochelle salt. They proved that the mechanical stress that was being produced was a result of electrical charge generation. The Curie brothers' discovery was significant in physics because it showed that mechanical deformation and electrical charge were linked. But the opposite wasn't established right away. In 1881, scientists exhibited the reverse piezoelectric effect, which now refers to the ability of a material to be mechanically deformed when an electric field is applied. This was the first time the principle of piezoelectricity was proved to be bidirectional. In the early 20th century, after its discovery, piezoelectricity only attracted the interest of scientists. The stability and predictable behaviour of quartz led to its use becoming one of the most important piezoelectric materials. Scientists started to find ways to utilize it for real-world applications. These systems were the result, demonstrating to the world the practical value of piezoelectricity on a large technological scale.  The development of these materials was due to the success of sonar technology.  The major transformation in this theory was witnessed around World War I, when these materials were being detected underwater using detection technologies. The possibility of manufacturing submarines was being detected using piezoelectric materials by implementing the sonar technique. The development of these materials was something that proved piezoelectricity significance in technological field too.

In the 1920's and 30's, piezoelectric crystals gained more significance in radio and electronic technologies. Quartz crystal oscillators are made to give very accurate frequencies for communication devices, clocks, and other electronic circuits. This was the era when piezoelectricity was realised as a great application beyond the laboratory. Further notable progress was made in the Second World War when researchers were interested in investigating synthetic piezoelectric ceramics. Compounds like barium titanate had larger piezoelectric properties than most naturally occurring crystals and would be able to be formed into other shapes. This greatly expanded the potential applications of piezoelectric devices. Another significant breakthrough was made in the 1950s with the invention of lead zirconate titanate (PZT). In view of its excellent electromechanical properties, PZT has developed from the early stages to become one of the most popular piezoelectric ceramic materials. It was found to be helpful for sensors, actuators, ultrasonic devices, and industrial systems.

Piezoelectric devices spread rapidly from the second half of the 20th century into medical imaging, automotive applications, aerospace, industrial automation, and consumer electronics/precision engineering. Piezoelectric transducers started to play an increasingly significant role in ultrasound technology; Sensors started playing an increasingly significant role in vibration, pressure, and acceleration monitoring. Later, the research went on to piezoelectric polymers and composite materials. Using materials like PVDF, it was possible to have an extreme reduction in weight and great flexibility, opening up possibilities for flexible electronics, wearable sensors, and other applications where traditional ceramics could not be used. Now piezoelectricity is not only a scientific curiosity, but also a recognized technology. Innovative research now concentrates on finding lead-free materials without lead, flexible piezoelectric materials, miniature sensors, materials for harvesting and extracting energy, and advanced nanostructured materials. The industry is also researching ways to replace the use of classic piezoelectric ceramics with environmentally friendly options. So, the piezoelectricity story is one from the nineteenth-century experiments of the Curie brothers to the creation of sensitive sensors and actuators, to medical techniques, and to energy harvesters. The way it has been developed reveals how one of the earliest scientific findings can slowly make its way into a number of aspects of modern life.

What Are Some Known Worldwide Government Initiatives in Piezoelectricity?

• Toray develops Piezoelectric Polymer with enhanced heat resistance

The piezoelectric polymer under development is a significant breakthrough in the creation of smart and functional materials that are able to withstand heat exposure. Piezoelectric materials have the ability to respond to mechanical forces by producing an electrical signal. This is particularly advantageous for applications in the detection of pressure, motion, vibration, and deformation. However, the performance of many conventional piezoelectric polymers decreases when they are exposed to elevated temperatures. In this study, a response to this has been developed using a new polymer that keeps its piezoelectric properties in high-temperature conditions above 200°C. The enhancement could greatly expand the range of applications where flexible piezoelectric sensors can be used. Typical conventional polymer-based materials have the advantages of flexibility and lightweight, but their high-temperature resistance is limited, which results that they cannot be used in high-temperature machinery environments. Traditional piezoelectric ceramics have excellent electrical responses but are also very brittle and rigid, which can lead to difficulties when attaching them to curved, uneven, or large surfaces. An alternative would be a polymer that has better heat resistance and is flexible. One of the major advantages of the new material is its adaptability. It may be made in various forms and used in complicated geometry sensors as well as bigger surfaces. It may be particularly helpful when the vibration measurement is required throughout an entire component and not just at a single point.

There are many possible uses. New developments in vibration monitoring and anti-noise technologies in a vehicle suggest flexible piezoelectric sensors can be employed. In robotics, vibration information could help the machines with understanding physical contact and movement. This type of sensor could be applied to industrial equipment for dynamic or condition monitoring, enabling the operator to detect unusual vibration patterns, which could be a sign of wear or mechanical issues. In addition, it could be useful for the aerospace industry; in this area, numerous parts in aircraft and spacecraft are subject to the following stresses: vibration, mechanical stress, and temperature variations. The exposure of these systems under challenging conditions could give insight into how they perform when healthy. A second critical element in development is the shift to materials that do not contain some of the materials of concern for the environment. Lead-free and fluorine-free composition may have an added benefit in certain applications where the manufacturers are looking for materials having better environmental and regulatory characteristics. The overall development is an important step towards capabilities of flexible, high-temperature, and readily adaptable sensing materials. Such functionality has the potential to enhance the ability to perform vibration monitoring in a wide variety of transportation, manufacturing, robotics, aerospace, and other advanced sectors, while overcoming the limitations of traditional piezoelectric polymers, which can only be utilized in one’s surroundings at relatively limited temperatures.(Source: interplasinsights.com)

• TU Delft’s 3D-Printed Piezoelectric Smart Material

At TU Delft, the researchers have studied an alternative approach to improving piezoelectric materials by looking not only at the materials and substances, but also at the internal architecture of the material. They used the technology of 3D printing to develop and assemble structures that have very particular mechanical and electrical characteristics, selected for their potentially interesting applications. Traditionally, piezoelectric materials have been designed by choosing the right material to possess appropriate electrical and mechanical properties. They can generate a response to an electrical stimulus when compressing, extending, or vibrating the material. The other way round is also viable, in which electrical energy is translated into mechanical motion. Traditional materials may, however, be restricted as to direction, strength, and type of response that they can provide. The concept of structural engineering is added to this approach in TU Delft as a further way of controlling these properties. Instead of creating a simple block or conventional shape, 3D printing can be used to create complex internal architectures of researchers. The form of these structures can be engineered in such a manner that they have a specific mechanical response or electrical response that generates unique properties and functions. Particularly significant use of the additive manufacturing due to the freedom of creating complex geometry. Some structures may be challenging or costly to produce using conventional manufacturing methods. The process of 3D printing enables the material to be formed in layers, allowing for the creation of designs that would be hard to produce otherwise. This could result in various combinations of sensitivity, flexibility, strength, and directionality of response in piezoelectric materials. Rather than creating one material that functions the same in all applications, they can create the interior structure of a part based on each application's needs. The applications in advanced sectors could be multiple. In healthcare, tailored piezoelectric devices might be applied to diagnostics and implant devices. When it comes to robotics, among the possible applications of lightweight smart structures are robotics sensing applications such as sensing contact, pressure, and movement. Sensitive piezoelectric structures might be used in underwater systems for mechanical or acoustic signal detection. The technology also has potential applications in noise-control and vibration-monitoring systems. The structure can also create different responses to mechanical stresses, and such components could perhaps be designed to try to detect specific types of vibration. The research represents a wider change in materials research. Researchers are coming around to the idea that chemistry isn't the only determinant in the effectiveness of a material. The shape, internal architecture, and structural arrangement are also programmable to give new functions. In conjunction with advanced structural design and piezoelectric technology, 3D printing is a promising avenue for next-generation smart materials. In the future, such materials might be more readily available, tailored, lightweight, and multi-functional, presenting new opportunities in healthcare, robotics, aerospace, sensing, and other high-tech industries.(Source:www.tudelft.nl)

What is The Production Process of Piezoelectric Materials?

One phenomenon used for piezoelectricity is that certain materials can both convert mechanical energy into electrical energy and the other way around. This is the result of the non-uniform distribution of positive and negative charges in the crystal or molecular lattice of a piezoelectric material. Piezoelectric materials have electric dipoles which are displaced when they are compressed, extended, or vibrated mechanically. This gives rise to a concentration gradient of charge (electrical potential) across the material. This is known as the direct piezoelectric effect, and is often utilised in sensors. The converse piezoelectric effect is the effect experienced when an electric field is applied to the deformation of a material, causing it to create sound. If an external electric field is applied to the material, its internal dipoles respond by altering their orientation/alignment or position. This gives rise to an expansion and contraction or otherwise deformation of the material. This property is especially interesting in precision-control systems, ultrasonic systems, and actuators. Piezoelectric materials can be fabricated in a variety of shapes and forms based on their chemical composition and/or application. Naturally occurring crystals, such as quartz, may be cut and formed into appropriate parts. Most synthetic piezoelectric ceramics are fabricated by a process involving the formation of powder, mixing, shaping, drying, high-temperature sintering, etc., of a material like PZT or barium titanate.

The proportions of the chemical powders used to make ceramic products are precisely proportioned and blended for a uniform composition. The mixture is formed by being pressed or moulded into the desired shape. It is heated at a controlled temperature whereby the particles attach and create a dense ceramic structure. The material is cooled and then passed to the electrodes. The ceramic is subsequently poled by applying a high electric field to align the domains within the material and impart it with desired piezoelectric properties.

Because of the misconception that this is a rather complex process, it is the type of manufacturing that piezoelectric polymers go through. The molecular orientation can be achieved when processing films of polymers by extrusion or by stretching and electrically poling the film.

Mathematical Equations

where:

D = electric displacement
d = piezoelectric coefficient
T = mechanical stress
ε = dielectric permittivity
E = electric field
S = sT + dᵀE

Where:

S = mechanical strain
s = mechanical compliance
T = applied stress
dᵀ = piezoelectric coefficient in the indicated direction
E = electric field

For a more naive sensor, the charge generated can be modeled as: Q = dF
where Q is the electrical charge generated, d is the piezoelectric charge coefficient, and F is the applied force. This voltage is approximately:

V = Q/C

These equations illustrate the basic link between mechanical force, electric charge, the electric field, and deformation, which is the basis of piezoelectric sensors, actuators, and energy-conversion devices.

Technological Updates in Piezoelectric Materials

With the growing demand for smarter sensors, flexible electronics, precision actuators, and energy-efficient devices, the piezoelectric materials industry is being transformed by significant technological advances. Current research is no longer just geared towards enhancing the fundamental piezoelectric response of materials. Instead, studies and development efforts are focused on increasing flexibility, heat resistance, durability, environmental compatibility, miniaturisation, and production efficiency. The most significant development is the development of lead-free piezoelectric materials. PZT has good performance and is based on traditional materials, but it contains lead. New ceramic compositions like potassium sodium niobate, barium titanate, and others have been studied because of increasing environmental and regulatory issues. The goal is to obtain high piezoelectric performance without relying on potentially harmful elements.

Another major development is the appearance of flexible piezoelectric polymers. Thin film materials such as PVDF can be manufactured and applied to surfaces like curved surfaces, wearables, and flexible electronics. New polymer formulations are being developed with more temperature resistance and stability over longer periods. This is especially true for automotive, aerospace, and industrial applications where sensors can be subject to heat and mechanical stress. There are also changes to how piezoceramic parts are made, with 3D printing and additive manufacturing. Traditional manufacturing methods will limit the shape and inner framework that can be created. Engineers can create complex shapes and tailor-made designs using additive manufacturing. Influencing the mechanical and electrical response of a component can be influenced by controlling the architecture of the component. This is enabling new sensors, actuators, and special smart materials. AI and computational modelling are also significant technological advancements. Researchers can use machine-learning tools to determine the right materials for making piezoelectric devices and to tweak their internal properties. AI can also monitor the signals from the sensors and detect patterns that could indicate equipment failures, mechanical issues, or vibrations. Miniaturisation is progressing alongside these developments. Today, piezoelectric devices are used in more and more MEMS and small electronic devices. Smaller parts can be used for accurate sensing and take up less space and material. Also, increasing interest in piezoelectric energy harvesting. New materials and structural designs are being developed to enhance mechanical vibration into electrical energy transfer. The power generated is typically small, but can be beneficial for low-power sensors and connected devices. In general, technological advances are making piezoelectric materials smaller, smarter, more flexible, more efficient, and environmentally friendly. The enhancements should make them more widely used in healthcare, automotive systems, robotics and industrial automation, and the aerospace and consumer electronics industries.

The Piezoelectric Materials Industry: Future of the Piezoelectric Materials Industry

The future of the piezoelectric materials industry is closely tied to the development of smart technologies, automation, electrification, healthcare innovation, and connected devices. Piezoelectric materials have many potential applications beyond their traditional use, as they are increasingly required in industries for real-time sensing and precise control. Smart sensing systems are one of the most promising future opportunities. Piezoelectric sensors can measure pressure, vibration, acceleration, and mechanical stress in a very sensitive manner. Such sensor networks may be deployed in large numbers in future industrial applications to constantly monitor machinery. These systems, combined with data analytics and AI, could detect abnormal activity and forecast potential equipment failures before they happen. Other potential markets include the automotive and electric-vehicle industries. The vibration, pressure, and acoustic behaviour, and other mechanical conditions can potentially be monitored by piezoelectric sensors. With the rise in the level of vehicle automation and electronic control, the demand for compact and reliable sensing systems is expected to rise.

Another key growth sector is healthcare. Enhanced piezoelectric transducers could be used for ultrasound imaging, diagnostics, therapeutic, and wearable health-monitoring equipment. The flexibility of piezoelectric materials can enable the sensors to adapt more closely to the human body, opening up possibilities for continuous monitoring. Self-powered electronic systems are also expected to be a blessing for the industry. The piezoelectric energy harvesters can generate electrical energy from mechanical motion. This could be used to power low-energy sensors in buildings, industrial machines, transportation, and infrastructure in the future. These systems will help minimize battery replacement frequency. Environmental sustainability will become more significant. The use of non-leaded piezoelectric materials is likely to grow due to the push from manufacturers to find safer materials than the traditional ones, which are based on lead. Research will also be directed at materials that can be recycled, manufacturing processes that require less energy, and longer-lasting components. Another important direction will be the combination of 3D printing, artificial intelligence, and advanced materials engineering. Complex structures with high piezoelectric responses may be identified with the help of AI-assisted design and may be fabricated with high precision using 3D printing. This may result in tailored components to meet individual industrial needs. The industry will, however, encounter challenges such as manufacturing costs, durability of the materials, temperature stability, and competition among different material technologies and scaling. Also, some applications might call for much more energy than currently can be delivered by traditional piezoelectric systems. Although there are these challenges in place, there is a bright future ahead. The most distinctive feature of piezoelectric materials is their sensing, actuating, and energy-converting properties. They can be combined with digital technologies to become a part of an intelligent system. In the end, the new industry will be defined by smart sensing, custom manufacturing, flexible devices, environmentally friendly production, and high-performance materials. As these technologies progress, piezoelectric materials may grow in significance to develop smarter, more efficient, and responsive industrial and consumer technologies.

Conclusion

Piezoelectricity is one of the most useful discoveries of the fundamental sciences that can become a technology with a wide range of applications in modern life. This is based on the ability of some materials to transform mechanical energy to electrical energy and electrical energy to mechanical energy. The unique two-way conversion has made piezoelectric materials important for sensing, actuation, measurement, and energy-conversion applications. Piezoelectric technology has come a long way since its discovery in the 1800s. Early work focused on naturally occurring crystals (like quartz), and later studies concentrated on engineered ceramics and polymers that performed better. This has been made possible by the use of many materials, including PZT, barium titanate, and PVDF, which have enabled the technology to be applied to a wide variety of applications, including electronics, telecommunications, healthcare, automotive engineering, and industrial automation.

A major advantage of piezoelectric materials is that they react swiftly and precisely to mechanical alterations. This is very helpful when it comes to measuring pressure, vibration, acceleration, force, and movement. They can also be shaped when driven by an electric field, making them suitable for use as actuators. The versatility of this sensing/actuation makes piezoelectric technology very versatile.

The potential has increased even more with modern manufacturing. The piezoelectric ceramics can be manufactured using powder processing, shaping, sintering, electrode application, and poling process, whereas the polymers can be processed into film form in a thin and flexible manner. New manufacturing processes such as 3D printing are opening the door to experimenting with more complicated internal structures and customised material architectures.

Technology is also getting more and more related to the field of developing smart and sustainable systems. The advantage of piezoelectric energy harvesting is that the energy can be extracted from mechanical vibrations that would otherwise be wasted, producing a small amount of electricity. These systems can enable high power efficiency for low-power sensors and connected devices, with the potential to reduce the need for traditional batteries in some applications. But industry has its problems. Certain high-performance piezoelectric materials contain lead, which poses environmental and regulatory issues. Scientists are therefore trying to develop lead-free substitutes that would have the same performance as lead. Other challenges involve increasing the efficiency of energy conversion, durability, manufacturing costs, and performance in extreme operating conditions. The integration of piezoelectric materials with AI, IoT, wearable electronics, robotics, advanced healthcare, and AM devices is expected to be further enhanced in the near future. The use of piezoelectric sensors to gather signals can be analysed by AI, and the structures created using 3D printing can have a specific response. The flexible polymers would allow sensors to be embedded in clothing, medical devices, and in curvilinear surfaces.

The piezoelectric technology is now transitioning from simple sensors and actuators to multifunctional smart materials that have the ability to sense what is happening around them; to respond to the external forces applied to them; and to asynchronously or adaptively generate useful energy if the external forces are of sufficient strength. The level of adoption will depend on further research and development into environmentally-friendly materials, better manufacturing processes, and the seamless integration of intelligent systems.

The story of piezoelectricity illustrates how a seemingly mundane physical property can have a wide-ranging industrial impact. Looking forward, piezoelectric materials are poised for continued innovation, and their applications are likely to grow in various industries in the future, contributing to the development of more advanced and efficient systems.
